1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination

  • 1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination
  • 1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination
  • 1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination
  • 1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination
Place of Origin China
Nombre de la marca HAFE
Certificación CE
Model Number HMI1000W
Minimum Order Quantity 1UNIT
Precio Negociable
Packaging Details transport case or carton
Delivery Time 7-10days
Payment Terms T/T, L/C, Western Union
Supply Ability 3000units/year

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Lighting source 1000W HMI Balloon Material Polysilk
Lighting Sourse Single1000W Maximum power 1100W
Fan 2 x 36 W - 12V DC, 2.9A or 110v/230V Power supply volt 20V/208V/240V/277V AC - 60Hz or 230V AC - 50Hz
Restrike time 10 ~ 15 minutes Envelopes option(s) column / beacon
Deja un mensaje
Descripción de producto

1000w Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination





1. General Description

The Columus™ MH400 is a high-performance inflatable lighting tower featuring a robust air-inflated mast structure and equipped with a 400W Metal Halide (HID) light source. It delivers rapid deployment, 360° glare-free diffused illumination, and high lumen output—engineered specifically for nighttime construction, disaster response, public safety operations, and large-scale outdoor events.

Designed and manufactured by HAFE INTERNATIONAL LIMITED / BTCOOPS Industrial Safety Lighting Division, the MH400 meets IP44 protection rating and operates reliably in harsh conditions, including rain, snow, and wind speeds up to 60 km/h.





2. Primary Applications

l Emergency Response: Nighttime illumination at earthquake, flood, or traffic accident sites

l Construction & Infrastructure: Roadwork, bridge maintenance, mining, railway repair

l Public Safety: Temporary police checkpoints, border patrol, forensic scene investigation

l Large Events: Outdoor concerts, sports festivals, camping grounds

l Remote Operations: Airports, seaports, oil rigs, scientific field stations





3. Core Value Proposition

✅ Rapid Deployment: Fully operational in under 2 minutes by a single user

✅ 360° Soft, Uniform Light: Eliminates direct glare for safer, more comfortable visibility

✅ High Lumen Output: Delivers up to 39,000 lumens, effectively illuminating over 3,800 m²

✅ Rugged Environmental Performance: IP44-rated, wind-resistant (≤60 km/h), flame-retardant & tear-resistant fabric

✅ Branding-Friendly Design: Inflatable column surface supports custom logo printing—ideal for rentals and event promotions

✅ Global Voltage Compatibility: Works with standard AC power grids worldwide (120V / 220–240V)





4. Technical Specifications

Parameter Specification
Model Columus™ MH400
Light Source HID Metal Halide Lamp
Rated Power 400 W
Maximum Luminous Flux 39,000 lm
Luminous Efficacy ≤100 lm/W
Color Temperature 4200K (Neutral White)
Inflated Canopy Dimensions Diameter ≈ 40 cm × Height: 200 cm or 400 cm (2m or 4m mast options)
Approx. Weight ~12–18 kg (including blower, lamp unit, and carry bag; exact weight not specified in PDF)
Installation Method Built-in electric blower—tool-free setup; includes guy ropes for wind stability
Power Supply

AC 120V / 208V / 240V / 277V (60Hz) or 220–240V (50/60Hz)

Requires ≥1 kVA portable generator or mains power
Cold Start Time < 3 minutes
Hot Restrike Time 8–10 minutes
Lamp Life ≥10,000 hours
Ingress Protection IP44 (splash and dust resistant)
Wind Resistance Up to 60 km/h (with guy ropes installed)
Illuminated Area

>1 lux: ~3,848 m² (41,403 ft²)

>10 lux: ~707 m² (7,605 ft²)
Vertical Illuminance (at 4m height) 770 lux (~72 fc)






5. Application Case Studies

l Nighttime Highway Repair Project (China): Deployed without grid power using a portable generator, the MH400 provided uniform lighting across a 50-meter work zone, enhancing safety and reducing project duration by 30%.

l International Flood Relief Operation (Southeast Asia): Rapidly set up at temporary medical and supply distribution centers during monsoon flooding, significantly improving nighttime operational efficiency and personnel security.

l Major Outdoor Music Festival (Europe): Replaced traditional tripod-mounted lights in backstage and logistics areas, delivering shadow-free, low-noise illumination that enhanced both staff and attendee experience.





6. Packaging & Transport

l Standard Packaging: Heavy-duty, waterproof carry bag (Trunk Pack) for easy vehicle or manual transport

l Packed Dimensions: Approx. 60 × 40 × 25 cm (folded)

l Included Accessories:

¢ Inflatable tower unit (integrated HID lamp + blower)

¢ Power cord (region-specific voltage)

¢ Ground stakes and wind-resistance guy rope kit

¢ User manual and safety instructions

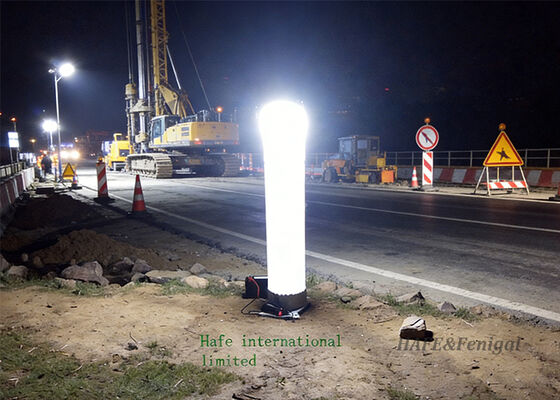

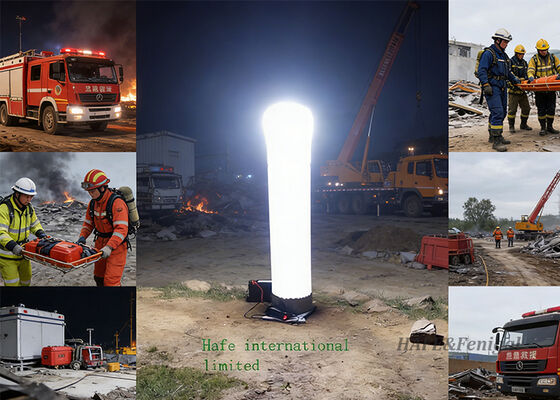

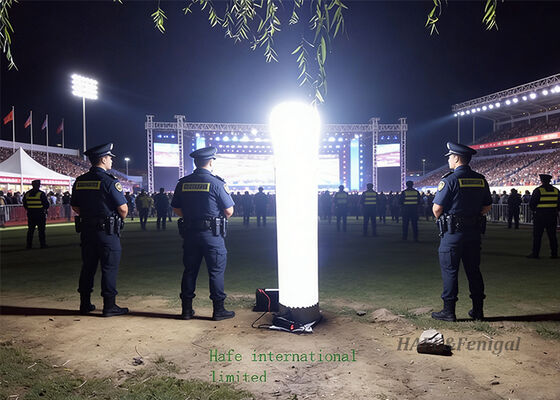

Lighting Effect & Application:

1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination 0

Company introduction:

HAFE International Limited (HAFE) is a specialized manufacturer and global exporter for Special Lighting, Inflatables and Electricals, Equipment & Tools involved.
Wuxi Fenigal Science and Technology Co. Ltd. is the holding company of HAFE International Limited.
OUR VISION
- to be a successful innovative manufacturer and supplier for special lighting and inflatables with beneficial hardwares used for both event sector and selected industries in global market.
OUR MISSION
- to provide quality special lighting, inflatables and relavanet electrical products, equipment & tools to our clients and fulfill definite market demands we serve for.
Established in early 2008, HAFE started from a B2B business entity, which integrated manufacturing resources in a list of industrial sectors included but not limited to like lighting, electricals, machinery, logisitic equipment, water etc. Among them, lighting and electrical business were typical of what we were mostly focused in, through not only OEM manufacturing, but also partially and gradually production shift in our own facilities or under our supervision.
